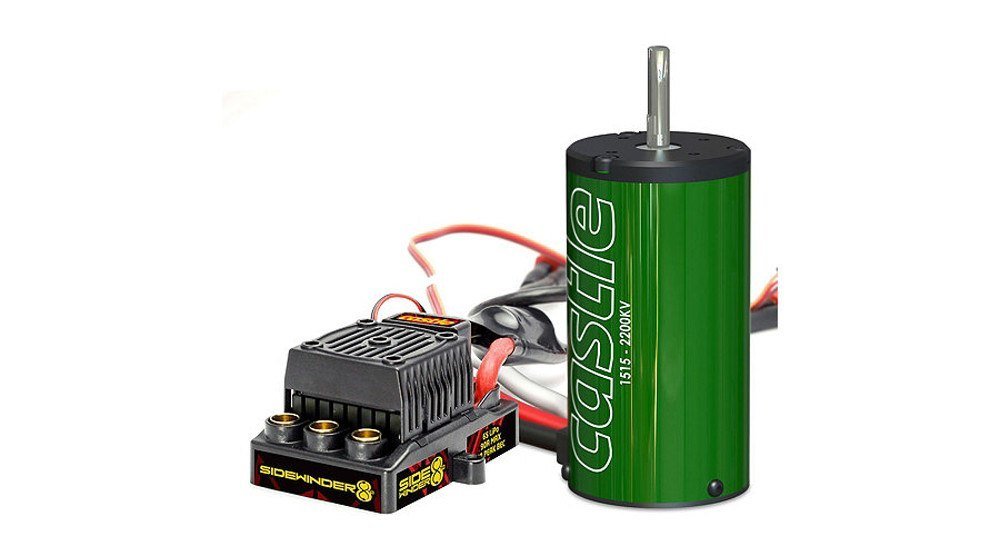

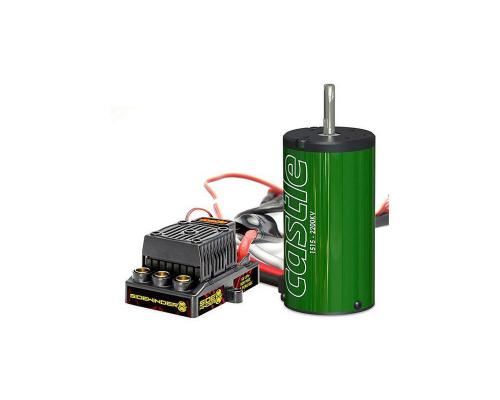

Castle - Sidewinder 8th - Combo - 1-8 Sport Car regelaar met 1515-2200 Sensorless motor

Prijs: 249,90

Model: 010-0139-00

Afhalen in een winkel

Nu gesloten Woensdag bereikbaar van 10.00 tot 18.00.

Omschrijving

Castle - Sidewinder 8th - Combo - 1-8 Sport Car regelaar met 1515-2200 Sensorless motor

Technical Specs
Controller
Input Voltage Range:	MIN: 2S LiPo MAX: 6S LiPo
BEC Specifications:	5.5V fixed; 8A peak
Operating Environment:	Waterproof* design allows for use in nearly any environment.
Brake:	Proportional
Reversible:	Yes, may be disabled for racing.
On/Off Switch:	No
Cooling Fan:	Yes, included 30mm, removable**
ESC Size:	L: 2.45" (62.2mm) W: 2.20" (56mm) H: 1.33" (34mm)
ESC Weight (w/wires):	3.52 oz. (100g)
Connectors:	6.5mm female bullets for motor connection.
Items Needed for Operation:	Battery connector (not included). 6.5mm Castle Connectors are recommended.
Product Use Statements:	Although Sidewinder 8th and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. *The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Application Guidelines:	Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 11 lbs, with batteries, ready-to-run.
Recommended Motors:	Neu-Castle 1515b 2200kv motor included in combo.
Max. Recommended Vehicle Weight:	11 lbs.
Programmability:	Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Telemetry Link Capable:	No
Tech Notes:	Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Motor
Input Voltage Range:	25.2V
Kv:	2200
Max. RPM:	60,000
Motor Size:	L: 2.96" (75.3mm) Diameter: 1.57" (40mm)
Shaft Size:	Diameter: 5mm, Length: 20mm
Weight (w/wires):	15.15 oz. (429.6g)
Mounting Hole Specifications:	3mm screw holes @ 1" (25.4mm) spacing.
Cooling Fan:	N/A
Connectors:	6.5mm male bullet connectors.
Items Needed for Operation:	N/A
Product Use Statements:	N/A
Application Guidelines:	Intended for up to 6S (25.2 Volt) operation. Incredible in monster trucks weighing up to 11 lbs with up to 6S LiPo packs, and works great in 1/8th buggies and truggies as well.
Max. Recommended Vehicle Weight:	11 lbs maximum.
Tech Notes:	Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.When using on a heavy truck (10 - 11 lbs) you must run conservative gearing as the sport Sidewinder ESC will run hotter compared for a Mamba Monster ESC.
